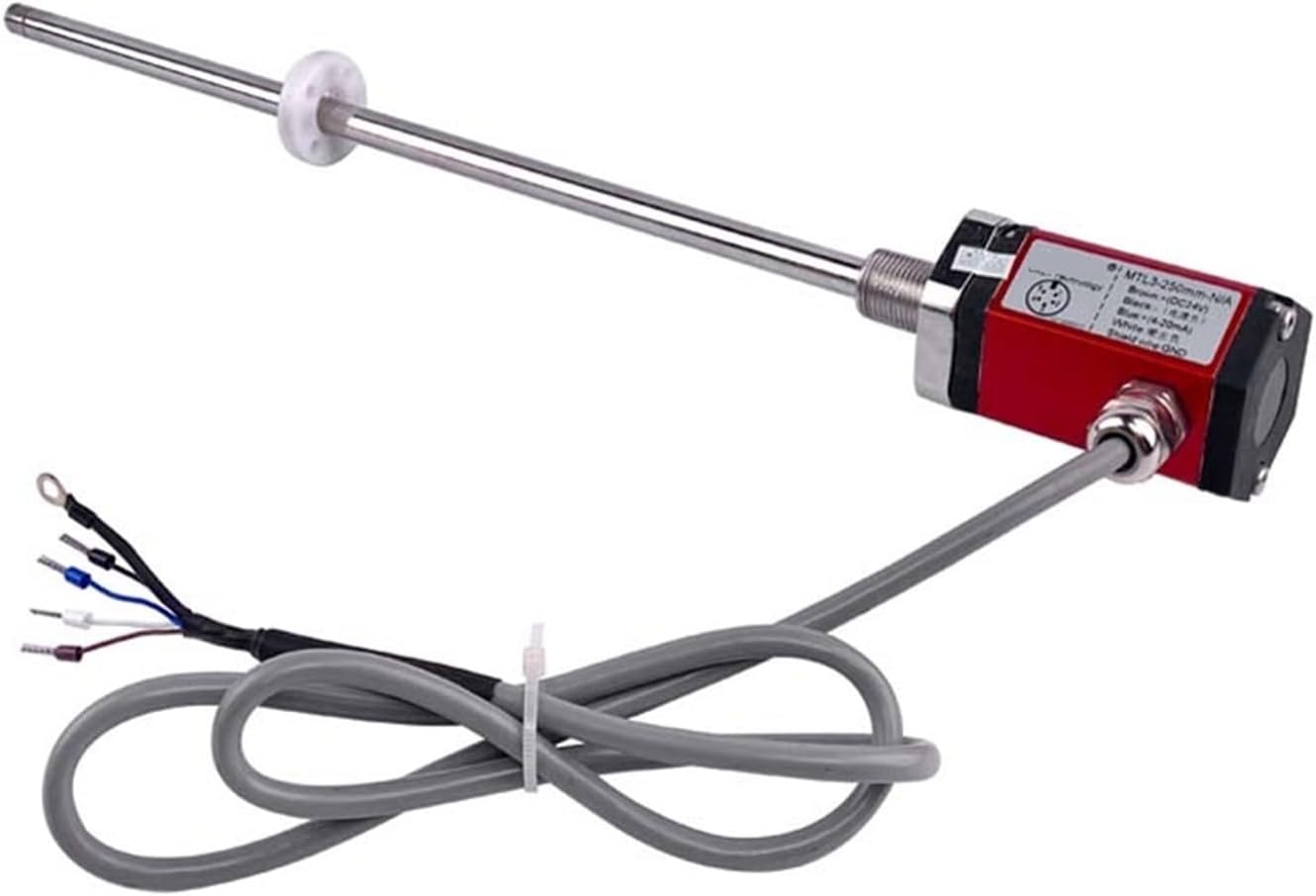

RWRAPS Magnetostrictive Magnetic Linear Position Sensor MTL3 360-800mm Built-in Rod Hydrocylinder Transducer Analog Output (Color : 750mm)

Product DescriptionMagnetostrictive sensors are non-contact and never wear out. It has the advantages of high resolution, high precision, high stability, high reliability, fast response time and long working life. Sensors do not need to be re-calibrated or regularly maintained.Note:when you order the product please mark the output signal and connector you need or contact us,Thank you !!(the output is different the electronic housing color is different)Performance parameter1. Measuring range :80 3000mm (can be customized)2. Power supply voltage: +12VDC +24VDC3. Output form/analog signal: current 4-20mA and 0-20mA, voltage 0-5V and 0-10V, digital signal: RS4854. Load capacity: Voltage signal output load 3 K Current signal output load 1K 5. Nonlinear error :0.05%FS6. Repeatability error :0.005%FS7. Resolution :0.038mm8. Hysteresis: acuities were 0.001% FS9. Temperature stability: 0.002%/10. Working current: 16mA; Current output 35mA11. Operating temperature :T1: -20 +55, T2: -40 +8012. Rod material: 0Cr18Ni9 (304) 13. Electronic bin shell material: anodized alumina14. Lead mode: high-temperature twisted-pair shielded cable (default length: 1M, can also be provided according to user requirements)15. Protection grade of enclosure: IP65Connection methodBefore connecting cables, ensure that the power supply meets the requirement of +24VDC and that the output power of the power supply is greater than or equal to 95mA for each sensor. If the power supply cannot meet the requirements, replace the power supply to ensure the normal operation of the sensor.Analog signal output wiring mode of MTL3 built-in magnetostrictive displacement sensor:1. Connection mode of direct outlet of waterproof connector:The sensor has five contacts: positive power supply (brown), negative power supply (black), positive signal output (blue), negative signal output (white), shell

• 【Plug-and-Play】Featuring a convenient plug-type design, this sensor ensures practicality and ease of use.
• 【Signal Quality】This displacement sensor minimizes signal transmission loss, ensuring reliable and clear data transmission.
• 【Antioxidant Treatment】Resist oxidation and durability; the displacement sensor is exquisite workmanship, which can reduce transmission loss.
• 【Exceptional Build Quality】Crafted with precision, our sensor utilizes high-quality stainless steel material, making it suitable for various conditions.
• 【High Compatibility】Our displacement compatibility with a wide range of input voltages that vary with displacement. This adaptability makes it suitable for diverse applications.
