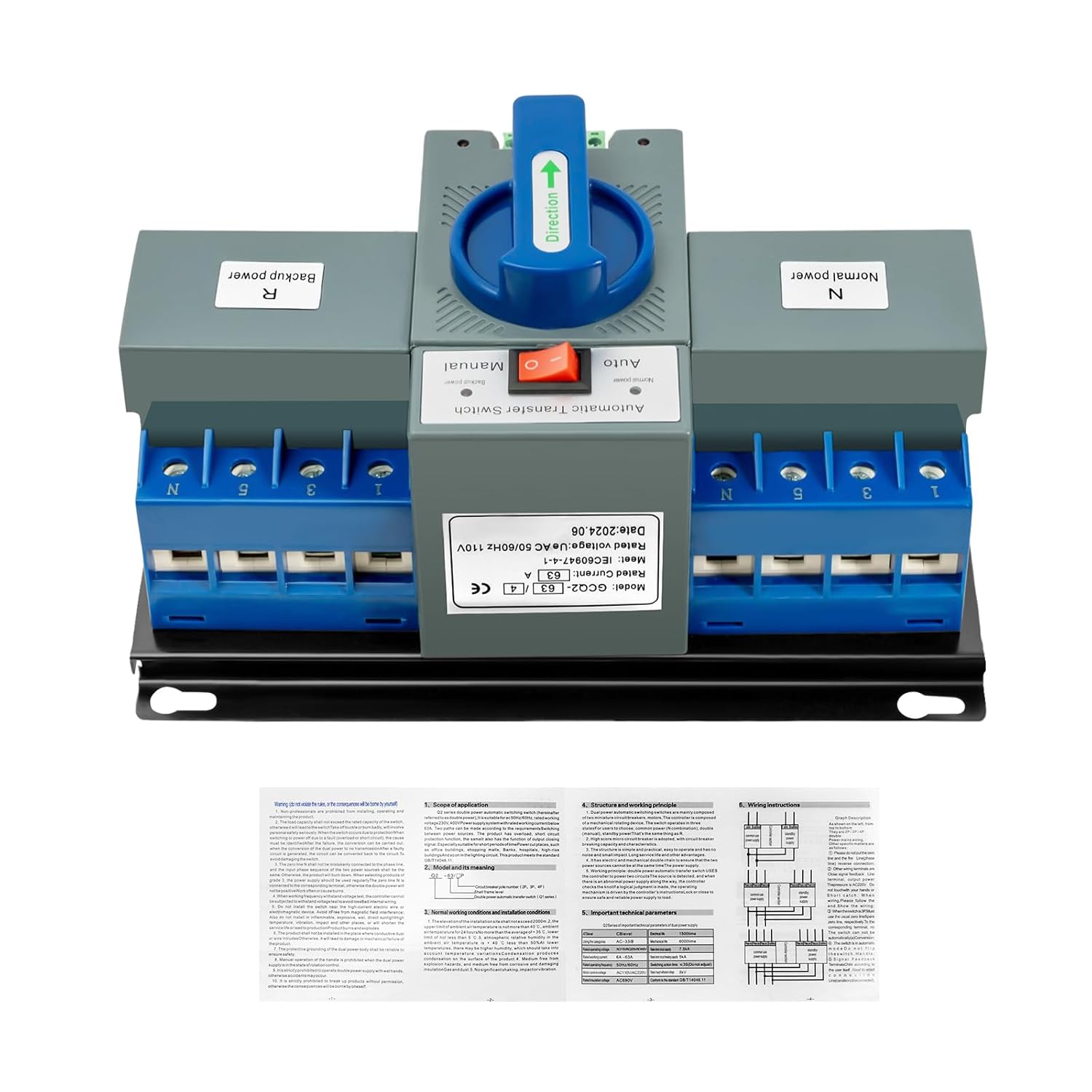

Dual Power Automatic Transfer Switch, 4P 63A 110V Dual Power Changeover Controller 50HZ/60HZ, for Main Powers Supply Generator (Blue)

Details Reserved Installation Holes: The back panel features 4 reserved installation holes, allowing for quick and easy wall installation. Safety-rounded Corners: They elevate aesthetics while protecting skin during installation and use. Terminal Block: Equipped with copper terminals, it has better conductivity.ApplicationIt can be used for single-phase AC110V power circuits as well as bi-directional power sources such as commercial generators, solar power, and batteries. If it is a DC or low voltage power supply, the inverter needs to be connected to a dual power source after reversing to AC 110V, such as a meter, street light, inverter, UPS, etc.SpecificationAssembly Required: No Style: ModernShape: RectangularColor: Blue, GrayMaterial: Plastic, Pure Copper, CopperRated Current: 63ABore: M6 (6mm/0.24in)ATS Level: CB LevelUsed Level: AC-33iBConversion Mode: Automatic Transfer and Self-RecoveryDisplay Function: Indicator Light DisplayInstallation Type: Wall Mount (Horizontal or Vertical)Operating Voltage: AC110VRated Voltage: AC240VLine Current: 6A-63AWorking Frequency: 50HZ/60HZInsulation Voltage: AC690VConversion Time: About 2SContact Type: Edged Output ContactsCircuit Type: BidirectionalActuator Type: Ring CrossNumber of Poles: 4Mounting Hole Distance: 20.6cm/8.11 inBase Width: 12.5cm/ 4.92 inProduct Size: 22.4*13.5*10cm/8.82*5.31*3.94inPackage Size: 23*14.5*13cm/9.06*5.71*5.12inGross Weight: 1.85kg/4.08lbsNet Weight: 1.76kg/3.88lbsPackage Included1* Dual Power Automatic Transfer Switch1* English ManualNotes 1. Please check the style and size before purchasing.2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.3. Please note that the power supply is cut off when the voltage is switched in both directions.4. Please note that the switch cannot turn the generator on or off.5. When both normal and standby power are supplied at the same time, the switch will give priority to the normal power.6. Please turn the handle in the direction of the arrow. Please do not use the handle in automatic control.7. Please do not install the switch with leakage protection on the upper end to avoid tripping. If necessary, install it on the lower end.8. This product cannot be mounted on a rail. General household distribution boxes are too small for concealed distribution boxes.9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

• 【Always-On Assurance】 The 110V 4P 63A dual power automatic transfer switch supports two-way power switching, intelligently managing between the main power supply and a backup power source. In the event of a power outage or voltage fluctuation, it automatically transfers the load to the backup system, ensuring continuous operation. Once the main power is restored, the switch backs automatically, maintaining reliable power supply at all times.
• 【Wide Application】 It can be used for single-phase AC110V power circuits as well as bi-directional power sources such as commercial generators, solar power, and batteries. If it is a DC or low voltage power supply, the inverter needs to be connected to a dual power source after reversing to AC 110V, such as a meter, street light, inverter, etc.
• 【Intuitive to Use】 With its both automatic and manual modes, easy-to-read indicator lights, and a clear instruction manual, you can quickly get started with the operation. It is highly responsive and can quickly and automatically switch power within seconds(≤2s), minimizing downtime and protecting sensitive electronic equipment.
• 【Safety Protection】 The switch supports short-circuit and overload protection functions, which can effectively protect the safety of the use process, so that you can rest assured when using. The internal circuit breaker is also designed with an arc-extinguishing cover, which can isolate the arc from damage to the switch.

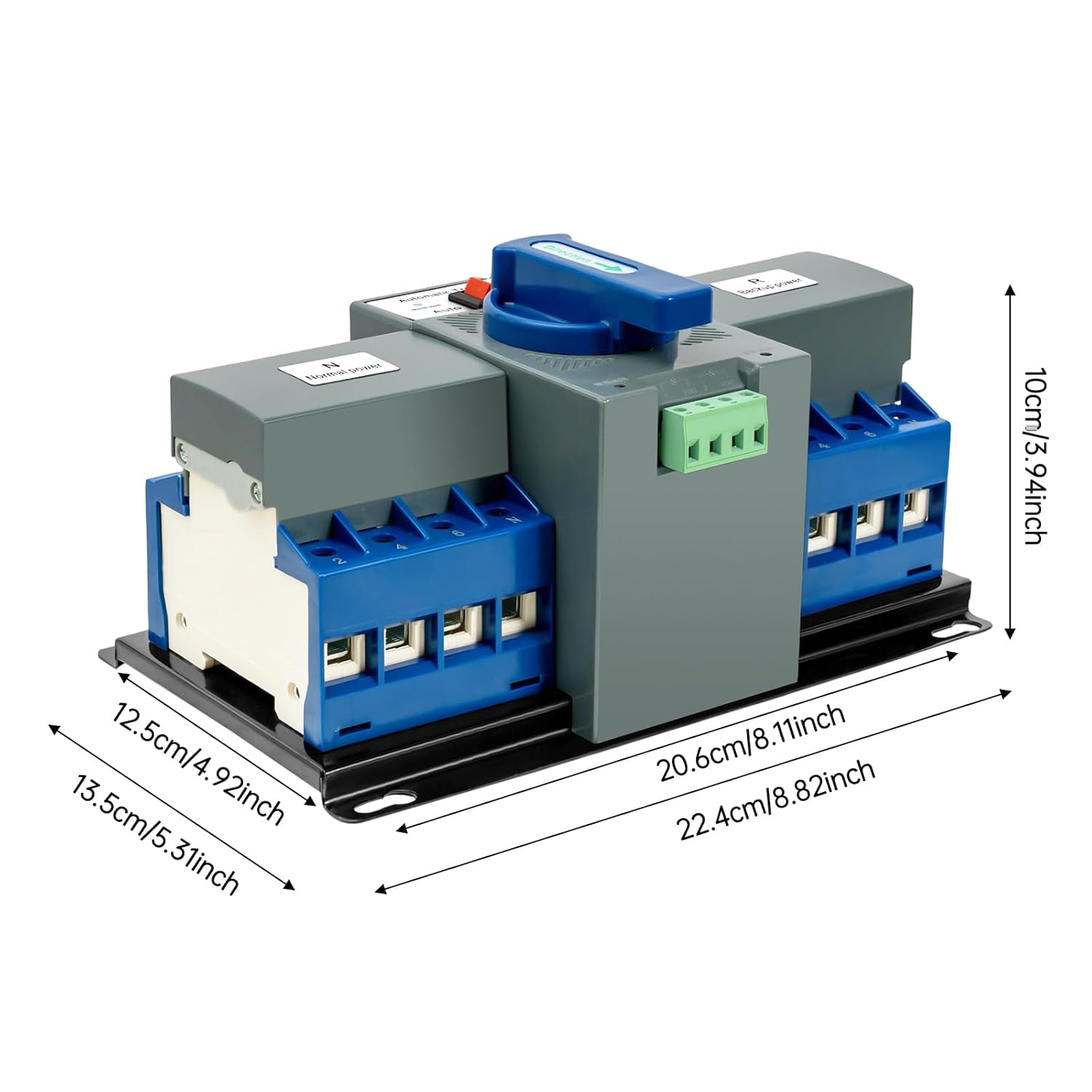

• 【Easy and Flexible Installation】 With a reasonable structure and small size, this product can be quickly installed horizontally or vertically, which increases the flexibility of using scenarios and fully meets your needs. 4 mounting holes on the back panel make it easy for you to fasten it to the wall quickly.
